Products
With over 60 years of experience in engineering and manufacturing high reliability inductors and transformers, we understand the importance of assuring reliability in mission critical applications.
Magnetic Components & Assemblies: Standard & Custom

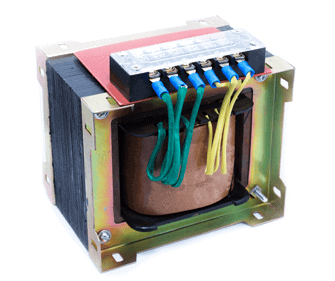

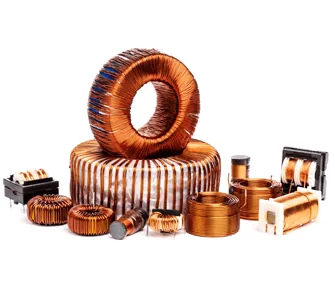

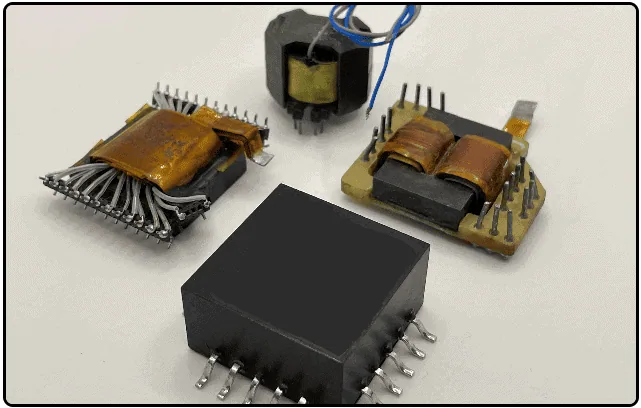

Transformers
- Low profile down to 0.25” and planar geometries
- Custom geometry cores
- Upto 30 outputs
- High efficiency & volumetric efficiency
- High power output winding techniques
- Wide switching frequency range 60 Hz-100Khz

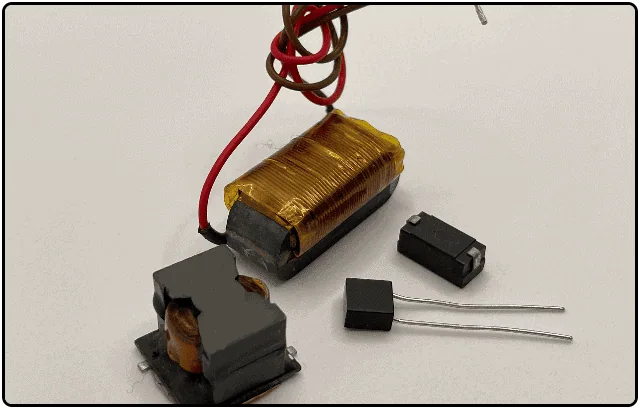

Power Inductors
- AC and DC power inductors
- Input PFC chokes for EMI
- Low profile down to 0.125” and planar, toroidal or block geometries
- Custom geometry cores
- High efficiency & volumetric efficiency
- High power output winding techniques
- DC inductors upto 600A
- AC switching frequency range 50 Hz-1Mhz
- Mechanical packaging for severe MIL shock and vibration requirements
- Temperature rating – 65C to 180C

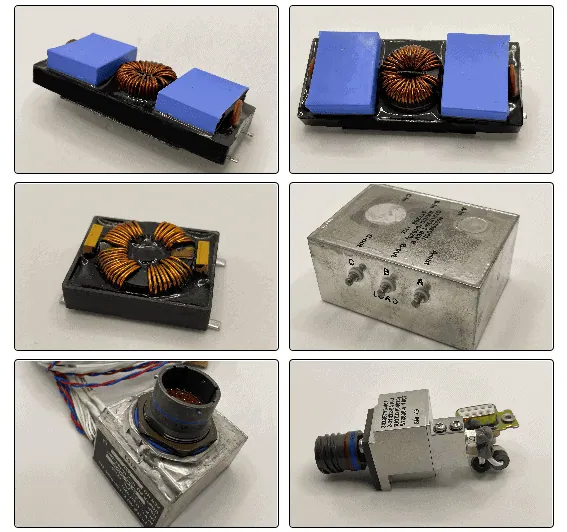

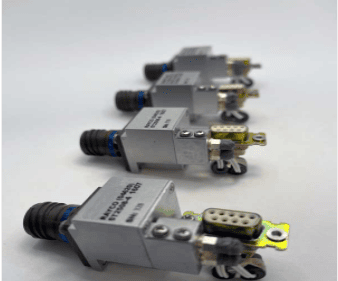

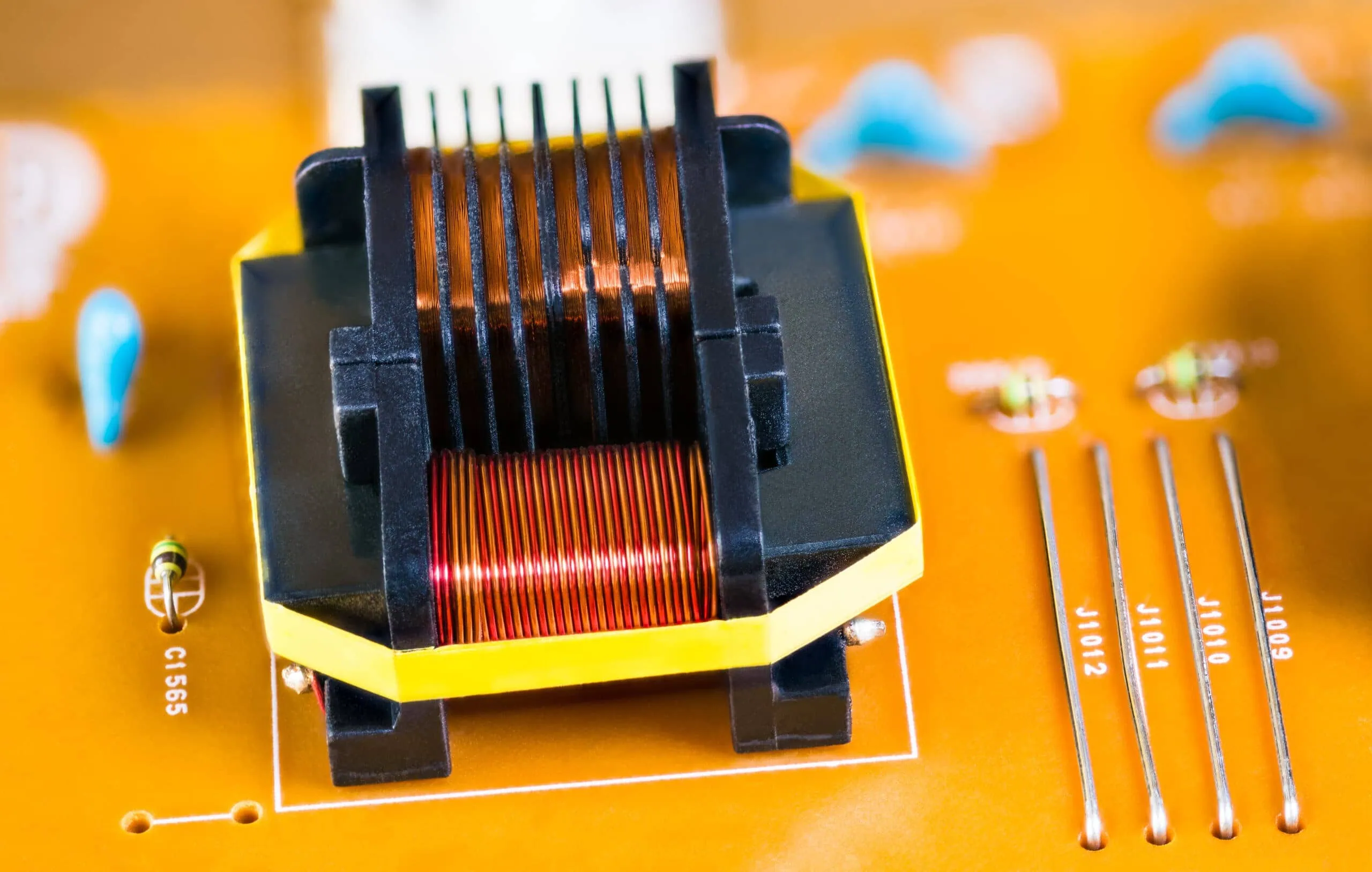

EMI Filters
- Frequency range: 40z to 200 MHz
- Electricals: 3V-600V | 1A-600A
- AC and DC filters
- Low-cost hybrid solutions with fiberglass and metal
- A vast selection of terminal options from our inventory
- Cable-harness EMI filters
- Innovative case engineering with plastic, steel, Al and Nu-metal
- Capability to generate a sample from performance requirements

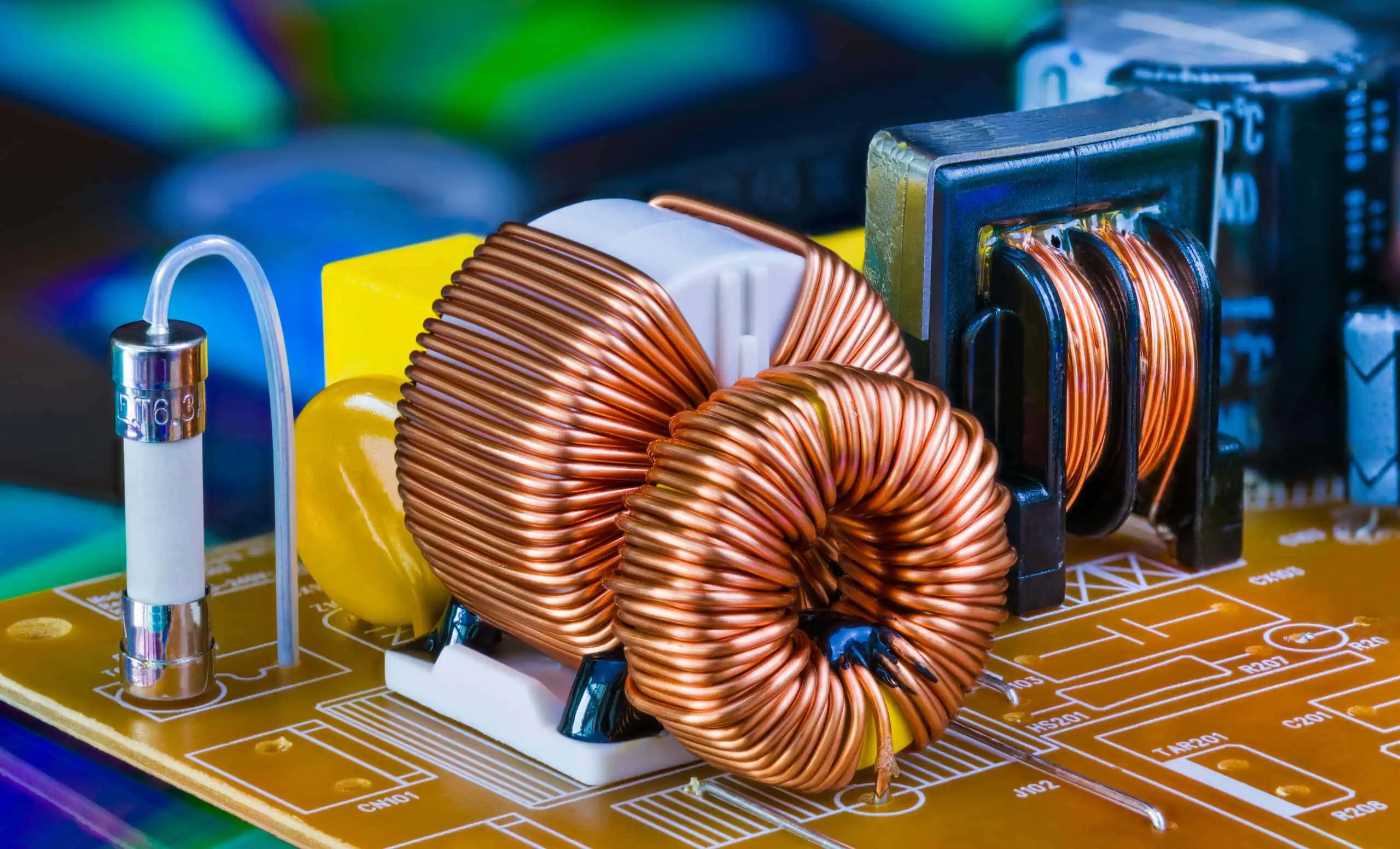

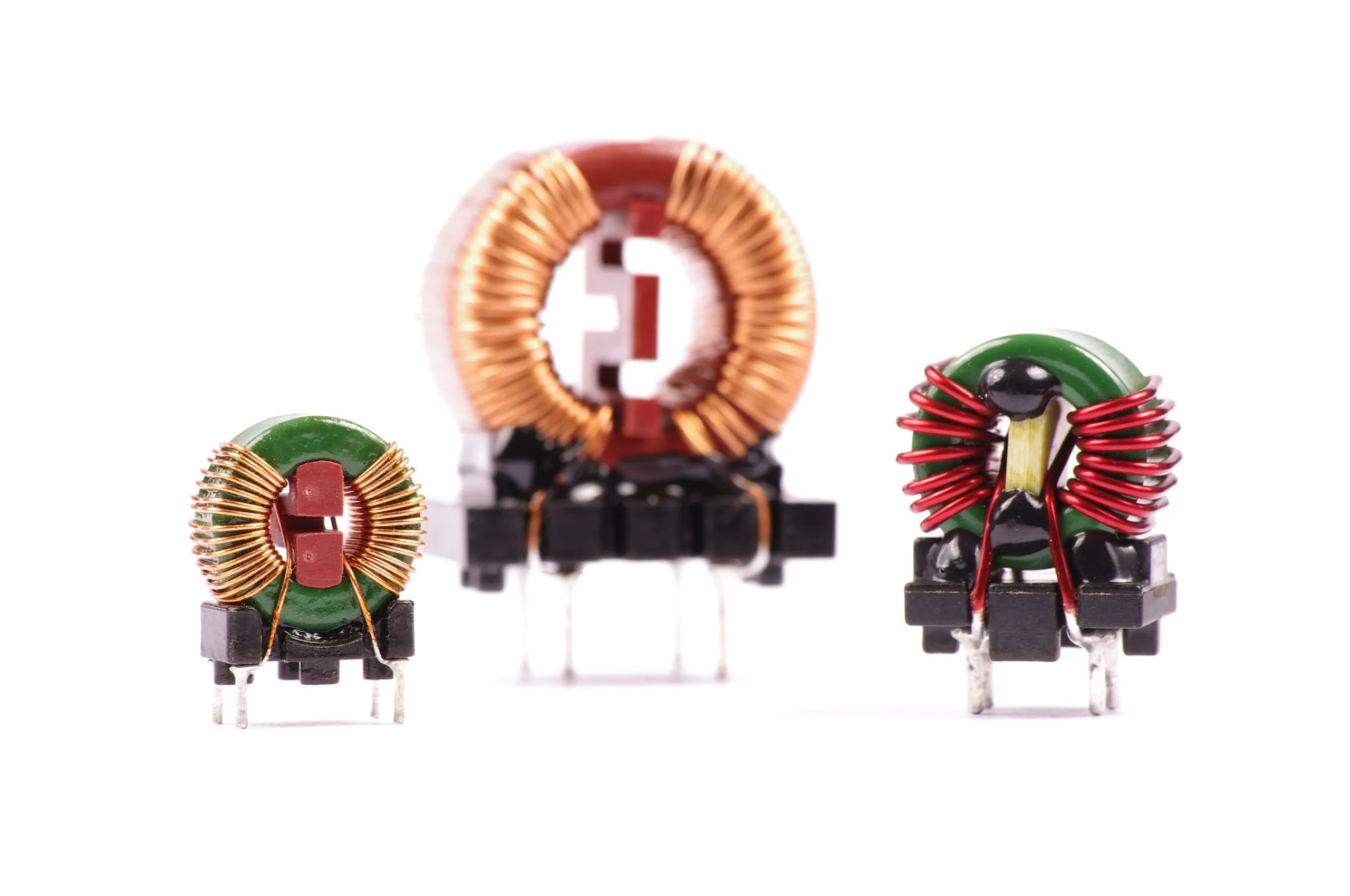

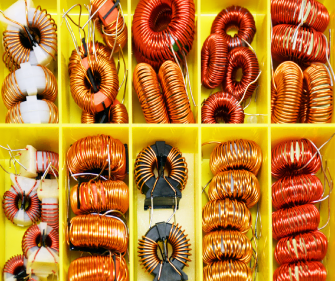

Common Mode Chokes
- AC and DC common mode chokes
- Low profile | High current
- Can engineer to very high inductances using innovative core materials
- Surface mount | Thru-hole | Molded
- High current with compact packaging
- Expertise with creative lead configurations

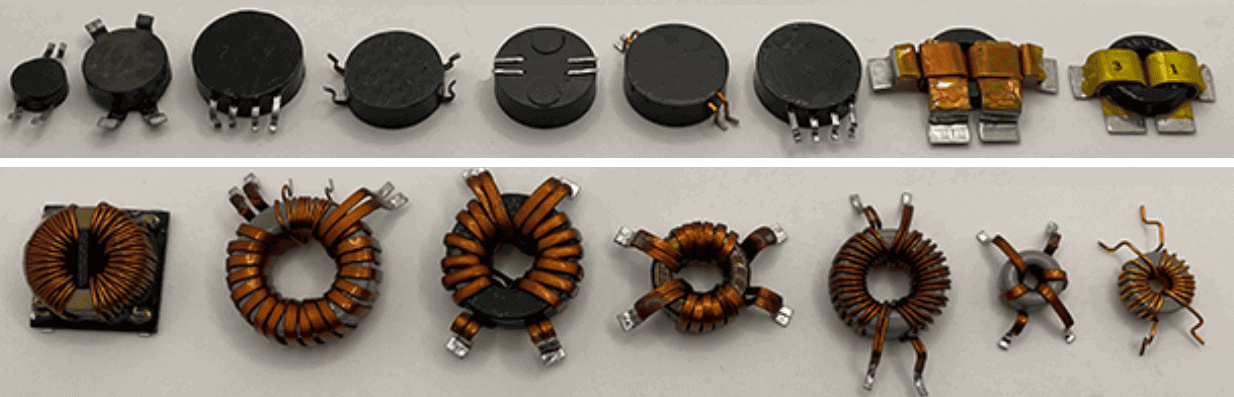

Planar/low Profile Technical Expertise
- Power Inductors | Common Mode Chokes | Planar Transformers
- Low profile | High current
- Low-cost solutions with standard cores and bobbins
- High power handling capacity with innovative winding materials and configurations
- Wide frequency range (400hz-1Mhz)
- Increased consistency in electrical specs such as leakage inductance, SRF and interwinding capacitanc
- Integrated thermal management within the engineering of the planar magnetics

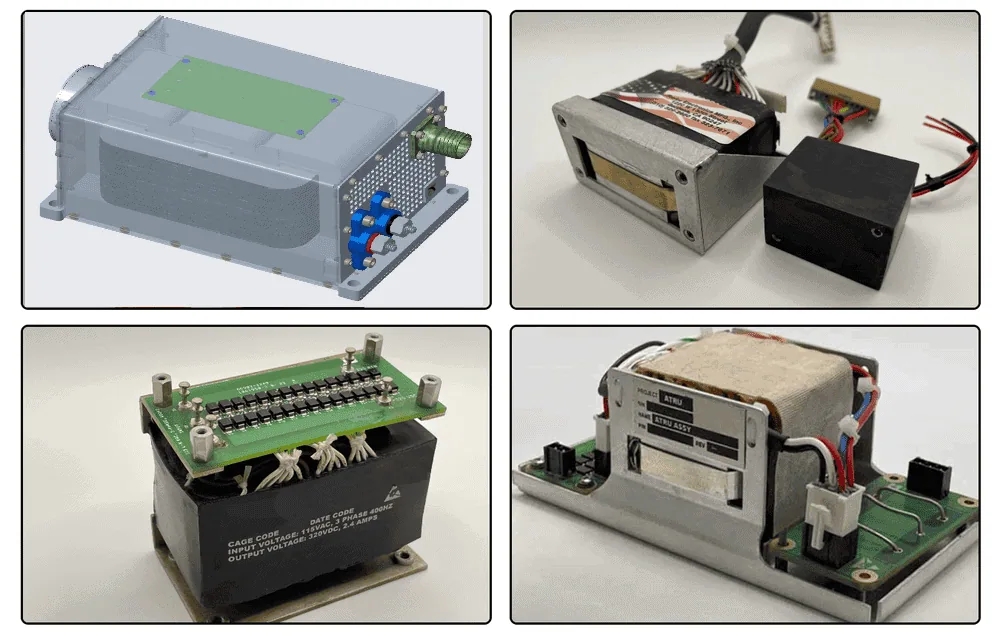

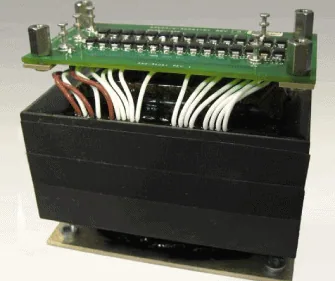

TRU, ATRU & Magnetic Assemblies
- Power Rating: 50W-25kW
- Frequency: 60 Hz to 1200 Hz
- Operating Temperature: -55C to +160C
- Input Voltage: 155 VAC – 230 VAC (3-Phase)
- Output Voltage: 50 VDC – 540 VDC
- Efficiency: 95-99%
- Power Factor: 0.95-0.99
- Meets DO-160 harmonics requirements
- 15ph 30pulse | 9ph 18pulse | 6ph 12pulse
- Applications
- Naval and Maritime central bus power
- Airborne Electronics and flight controls
- Radar
- Military Aircraft
- Commercial Aircraft
Our facility has been qualified and approved for production of all M-Series Magnetics
- QPL Miniaturized Power Inductors M27/356 Through Hole
- QPL Audio Transformers M27/357 Through Hole
- QPL Transformers and Inductors M27/372 (Audio, Power, and High-Power Pulse), Inductor, Surface Mount, Leadless
- QPL Transformers M27-93027
AS9100 RevD
Our facility is rigorously audited and certified annually to full compliance with AS9100 RevD standards.
ITAR
We are registered with the DDTC (Directorate of Defense Trade Controls)
(International Traffic in Arms Regulations)
We are registered with the DDTC (Directorate of Defense Trade Controls)
MIL/AERO
MIL-PRF-27
MIL-STD-981
MIL-STD-810
MIL-STD-202
J-STD-001FS
Weapon Spec certifications (WS6536)
DLA Authorized
QPL-DSCC (read more on Products Tab)
Technical Expertise:
Defense:
MIL-PRF-27, MIL-PRF-21038, MIL-STD-810 and MIL-STD-202:
- Bomb rack filter for military jets and helicopters
- EMI filters and power conversion for navigation boxes
- Power conversion for navigation gyros on drones, ICBMs and hypersonic missiles
- High voltage flybacks for detonators
- Starter coils for launchers
- Detonator coils for squibs
- Night vision power conversion for tanks and helicopters
Industrial:
UL, CE, EMC, FCC and CSA:
- 60 Hz transformers and EMI filters for high power test equipment
- Inductive dummy loads
- Board level magnetics for SMPS
- EMI filters & power magnetics for motor controllers and fan assemblies
- Trigger transformers for spark gaps
Commercial Aircraft:
DO-160 and MIL-STD-202
- Single phase and 3-ph planar power magnetics for aircraft wing flap and tail flap actuators, cockpit displays, flight simulators, data acquisition modules
- Power conversion for cockpit displays, flight simulators, on board radar, black box data aquisition modules
- ATRUs for commerical aircraft systems: Refrigerators, Coffee machines, Wine chillers, Microwave ovens, Trash compactors, Toilet pumps
Space:
Group A & Group B test levels, MIL-PRF-27 and MIL-STD-981
- Starter Coils for rocket engines
- High voltage transformers for starter coils for rocket engines
- DC power conversion for rocket gimbals
- Power conversion components for international space station
- Low profile, high current magnetics for microprocessors and amplifiers
Featured Applications:
Testing and Burn-in:
- Advanced automated test stations for 100% parts testing
- Clean room
- Corona testing to 50kV
- Inductance testing up to 600A
- RF testing up to 200 Mhz
- Spectrum Analyzer up to 40 MHz (EMI testing)
- Network Analyzer up to 200 MHz (EMI)
- Automated harmonics testing per DO-160 with Pacific SmartSource analyzer
- Custom jigs and full test set up for space grade burn-in and load tests
- High power microscopes for solderability inspections
Flexibility:
- Computer modeling with AutoCAD, P-Spice and SolidWorks
- Rapid prototyping and samples (within 1-2 days)
- Review SCDs and datasheets before release
- Use of Full in-house machine shop
- In house custom case/ cup fabrication process equipment
- In house silk screening and laser etching
- Vertically Integrated
- Strong Enginieering Support
Get In Touch
Contact us to see how we can help meet your technical product requirements!
